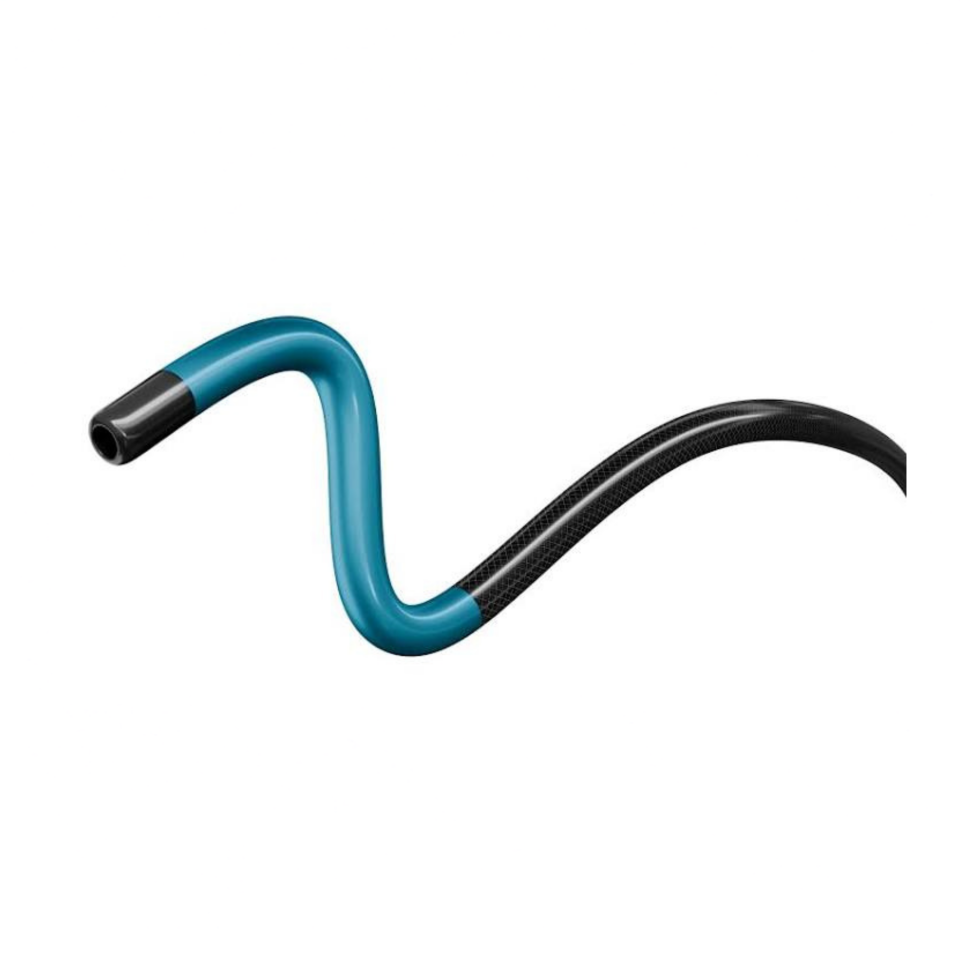

SPEX is a shapeable catheter designed to improve and secure vascular access. It allows the physician to shape the desired catheter angle, maintaining it throughout the procedure. The catheter is compatible with a variety of guidewires and procedural techniques, and also features a hydrophilic coating. It is intended for the treatment of peripheral artery disease and can be used together with other Reflow Medical devices.
Developed by Reflow Medical, SPEX is a shapeable catheter designed to improve and secure vascular access. Physicians can shape the catheter tip to the desired angle, which is maintained throughout the procedure. This enables more effective interventions, particularly in complex vascular anatomies.
Key features:
Compatibility: Works with the physician's guidewire and procedural technique of choice.
Versatility: Can be combined with the Reflow Wingman™ catheter to facilitate crossing occlusions.
Hydrophilic coating: The catheter is coated with a hydrophilic coating
Shapeable tip: Allows the physician to shape the desired angle, which is maintained throughout the procedure, with the ability to straighten or reshape the angle as needed.
Firm tip: The rigid tip enables crossing of occlusions using the guidewire and can direct the tip into microchannels as needed.
Technical specifications:
Usable length: 50, 90, 135 or 150 cm
Guidewire compatibility: 0.035 inch
Maximum outer diameter: 0.06 inch (4.6 F)
Maximum pressure: 360 psi (2482 kPa)
Shapeable tip zone: 0.75 inch (19 mm)
Introducer compatibility: 5 F (1.7 mm)
Hydrophilic coating length: 40 cm
The SPEX catheter is single-use and intended for use by healthcare professionals only. It helps improve vascular access, particularly in challenging situations, and is a valuable tool in the treatment of peripheral artery disease.
